C|PS³apex - complete system with digital control for reliable particle extraction *)

Ergonomic, fully equipped and digitally controlled user guidance.

C|PS³apex - The complete system with digital control for reliable particle suction extraction

The ergonomic complete system with digital controls for reliable user guidance

The complete system C|PS³apex is the result of consistent further evolution based on all user experiences with the C|PS² particle suction extraction system over the years. In addition to a full ergonomic redesign of the entire structure, the system provides user-friendly navigation with voice prompts throughout the freely programmable test sequence to assist in providing reproducible cleanliness tests. For this purpose, the suction extraction system features a modern digital control system for storing analysis parameters and for visual guidance with on-screen display of the test sequences. *)



Digital controls

With its digital controls, the system is particularly suitable for recurrent tests, such as inline tests during series production in the process environment or also tests in the laboratory. Several component-specific test parameters can be stored, which then guide the user through the test process with accompanying voice prompts and on-screen display. Test parameter monitoring also incorporates fully integrated volume flow monitoring during suction extraction.

Ergonomic design

With its digital controls, the system is particularly suitable for recurrent tests, such as inline tests during series production in the process environment or also tests in the laboratory. Several component-specific test parameters can be stored, which then guide the user through the test process with accompanying voice prompts and on-screen display. Test parameter monitoring also incorporates fully integrated volume flow monitoring during suction extraction.

Filter unit with ergonomic quick-release device

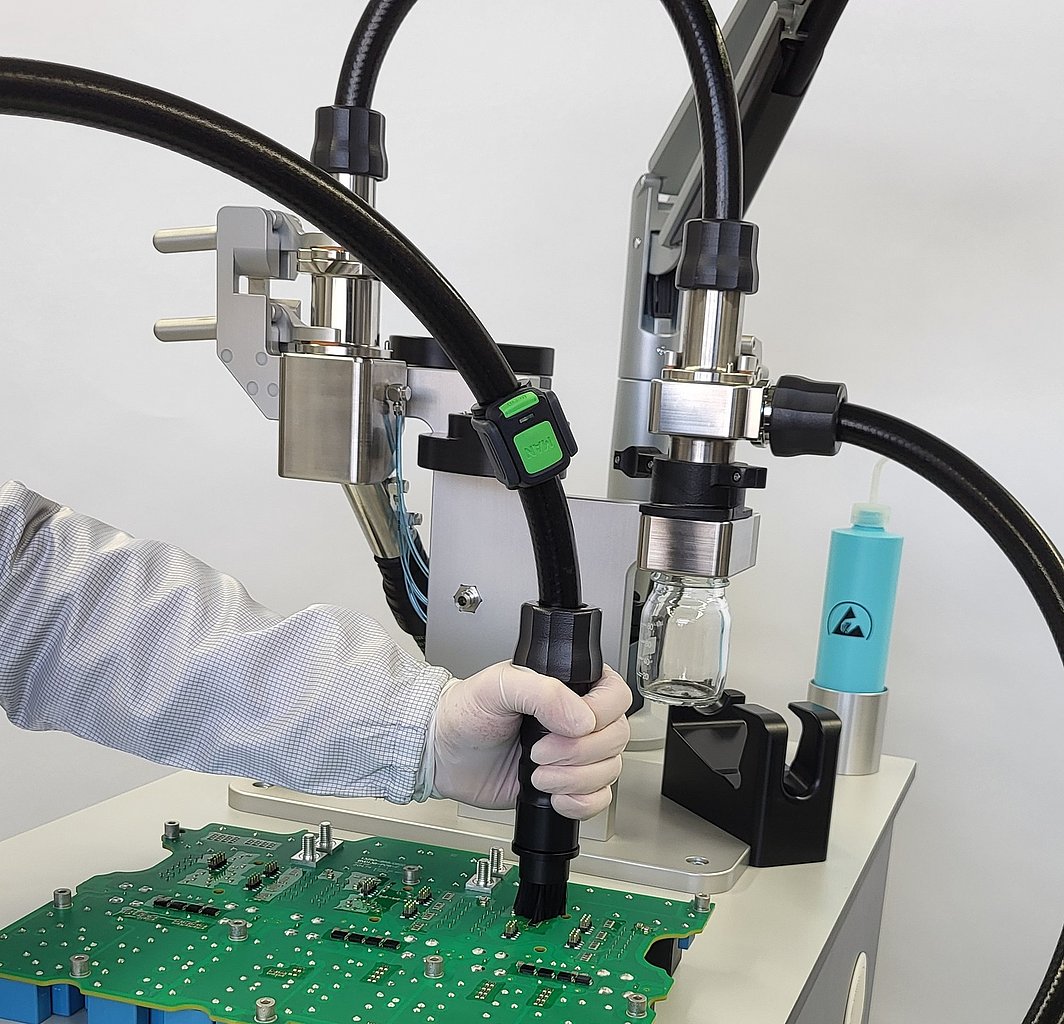

Analysis extraction of a PCB

Accessories for extraction, analysis and cleaning

The comprehensive extraction accessories, the analysis accessories and the cleaning equipment are housed in separate drawers with precisely fitted dividers.

*) C|PS³apex is currently available in Europe, availability for other regions on request

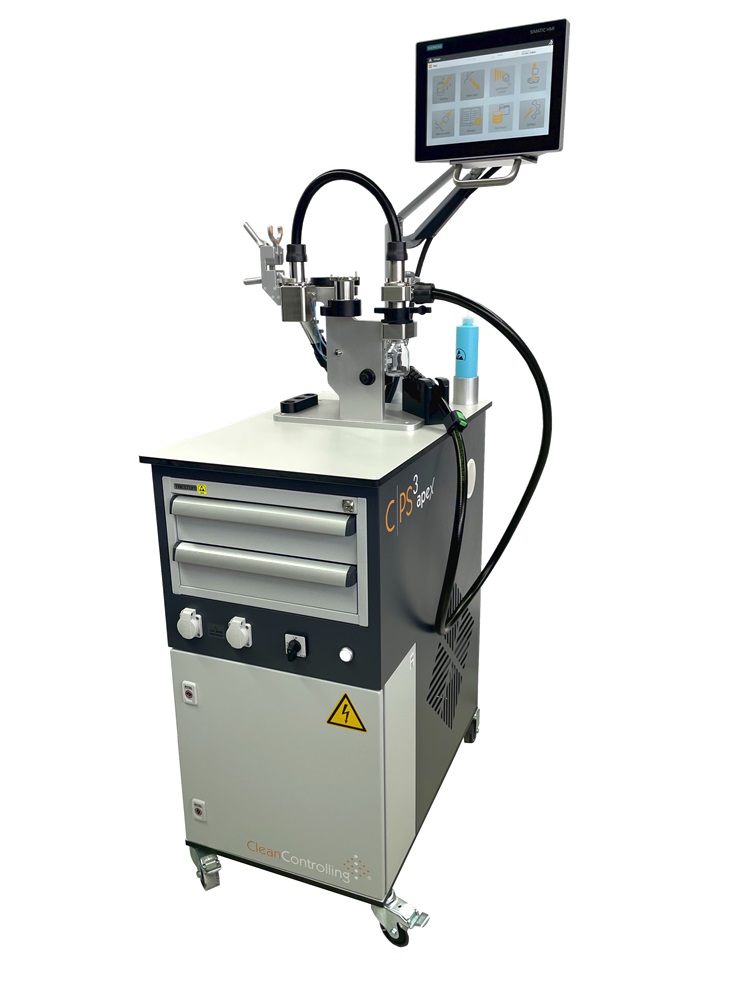

C|PS³apex in action

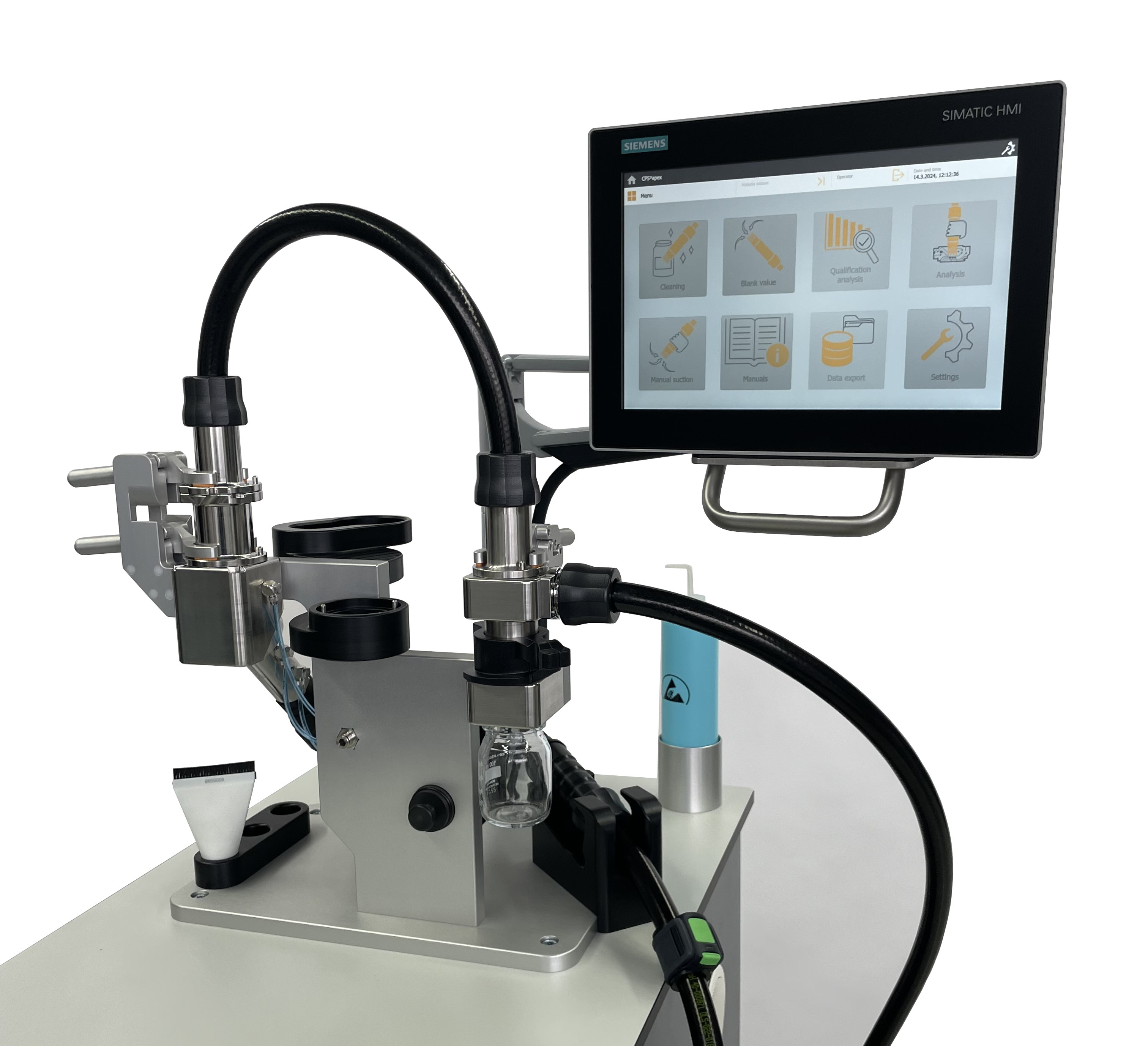

C|PS³apex with digital user panel
Intuitive user guidance via touch panel
Reliable determination of blank value
User-guided qualification analysis (declining test)
User-guided analysis with defined analysis parameters
Reliable repeat tests with retrievable analysis parameters
Simple operation thanks to visualized user guidance

ESD protection

As you would expect, the system features an ESD-compliant design, thus allowing its use in ESD areas or for testing ESD-sensitive components. This is particularly important in production environments for electrical vehicle components. In conjunction with the control system, this ESD conformity is an important basis for automated robot inline testing applications.
